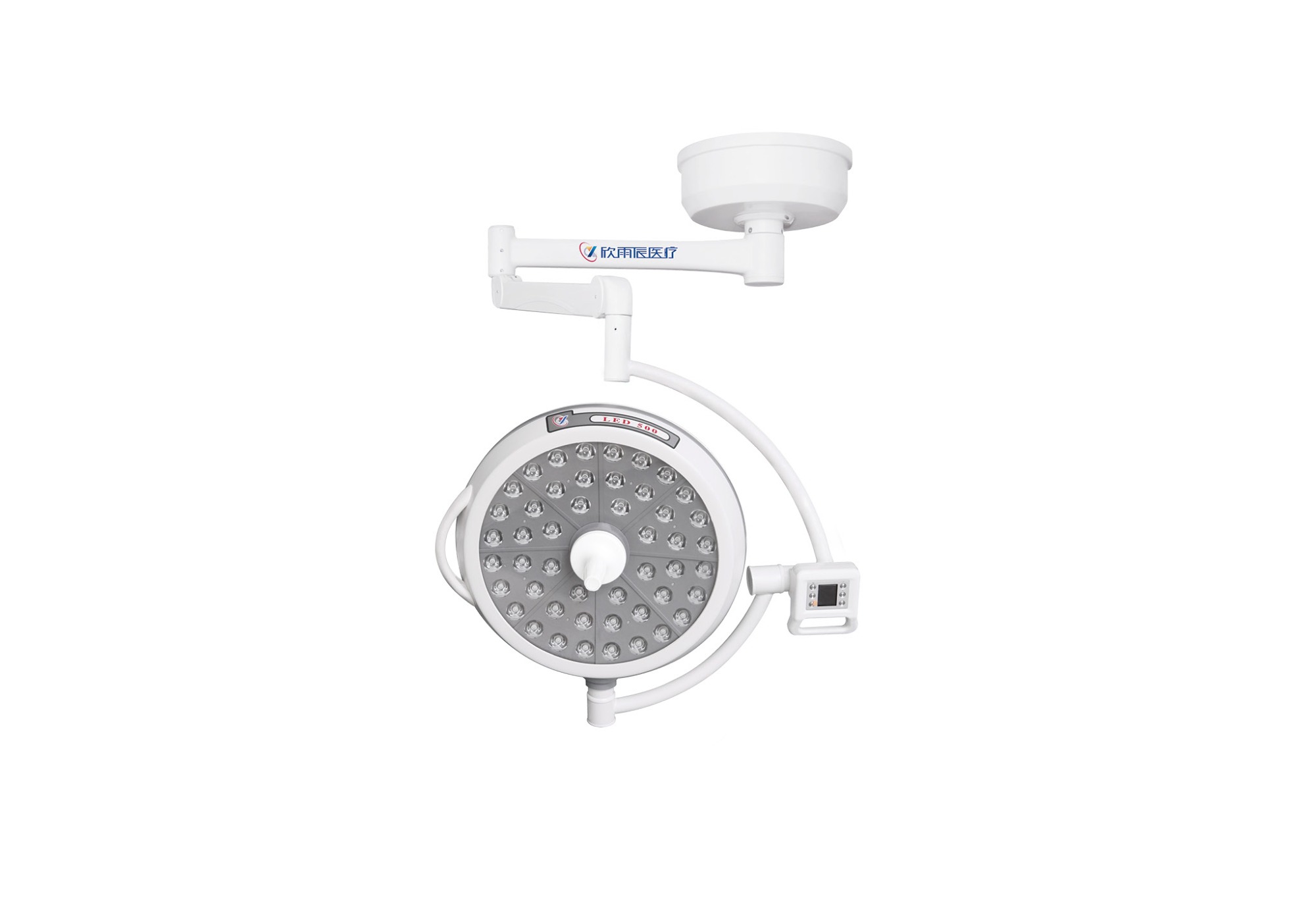

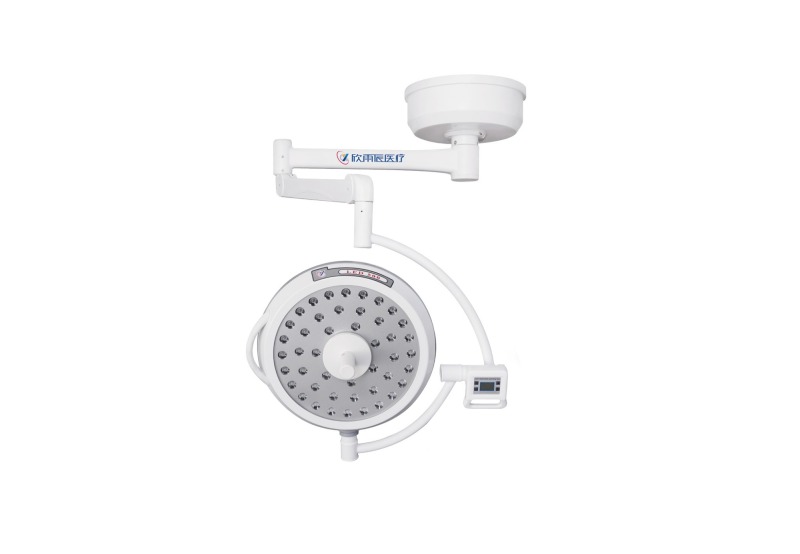

Surgical medical shadowless lamp-Ordinary-Single-headed lamp-Bright, no ghosting, clear and distinct

Surgical medical shadowless lamp-Ordinary-Single-headed lamp-Bright, no ghosting, clear and distinct

Name: Surgical medical shadowless lamp-Ordinary-Single-headed lamp-Bright, no ghosting, clear and distinct
Brand: MDK MEDICAL
SKU: 00472
Availability: InStock
Rating: 5 (1 reviews)

The LED surgical shadowless lamp features high color rendering (Ra ≥ 97) and adjustable color temperature (4300K ± 500K). It delivers deep-cavity illumination with cold light technology, energy efficiency, and zero thermal radiation, designed for precisio

Overview

1.Superior Color Rendering: Ra ≥ 97, R9/R13 > 90: Enhances color contrast between blood, tissues, and organs.

2.Adjustable Color Temperature: Reduces eye strain; optimizes visualization of tissues (e.g., viable vs. necrotic).

3.Cold Light Technology: Zero IR/UV radiation; ≤2°C temperature rise in surgical field.

4.High-Performance Lighting: 180,000 lux illuminance (1m distance); ≥1200mm depth; 100–300mm adjustable spot.

5.Energy Efficiency & Eco-Friendly: 60,000-hour lifespan; 50% lower energy use vs. halogen lamps; mercury-free & recyclable.

6.Ergonomic Design: Anti-glare dual-LED layout; 1-100% stepless dimming; avoids head/shadow obstruction.

Application

1.High-Precision Surgeries:
Cardiovascular (vessel visualization), oncology (necrotic tissue identification), plastic surgery.
2.Prolonged Complex Procedures:
Color temperature adjustment reduces surgeon fatigue; cold light ensures safety.
3.Venipuncture & Minimally Invasive Surgery:
High color contrast improves vein detection accuracy.
4.Medical Training & Research:
True-tissue color reproduction for teaching, recording, and pathology studies.
5.Sustainable Healthcare Facilities:
Low power consumption (400VA), minimal maintenance, and reduced waste.

Features

Bright and
Uniform Lighting

Excellent
Shadowless
Effect

Advanced
Control System

GET THE LATEST QUOTE Quote List

DESCRIPTION

PARAMETERS

APPLICATION

HOW TO USE

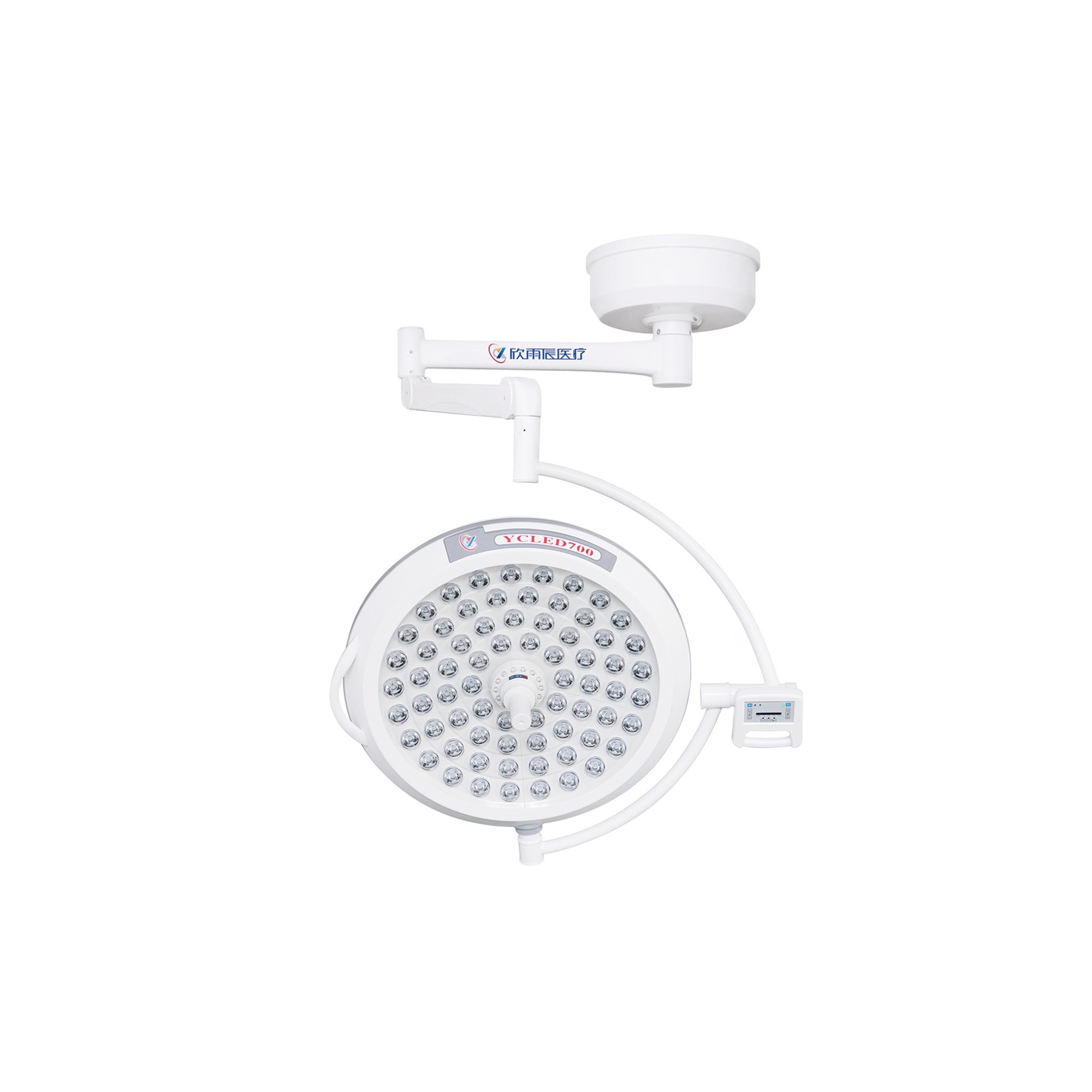

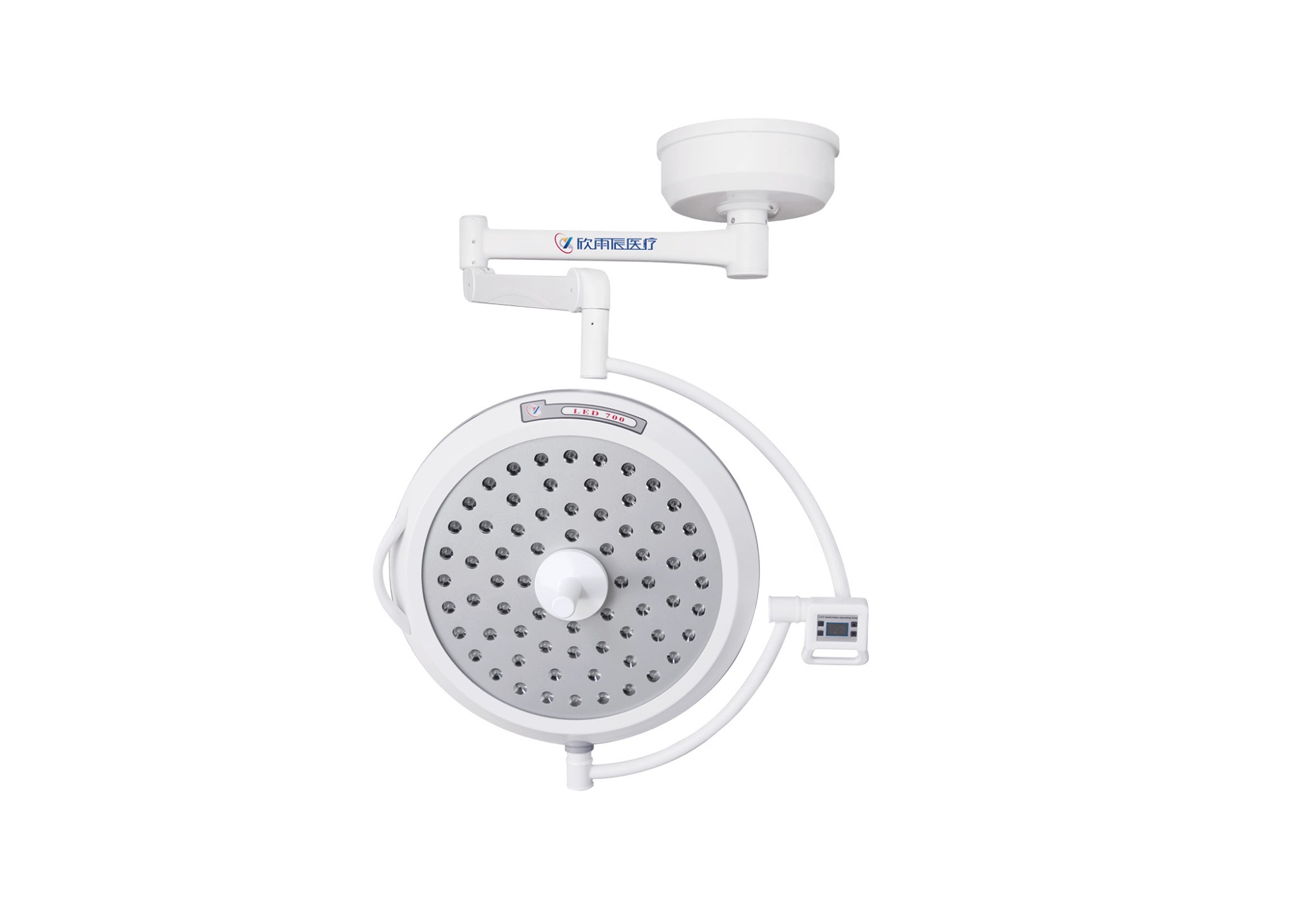

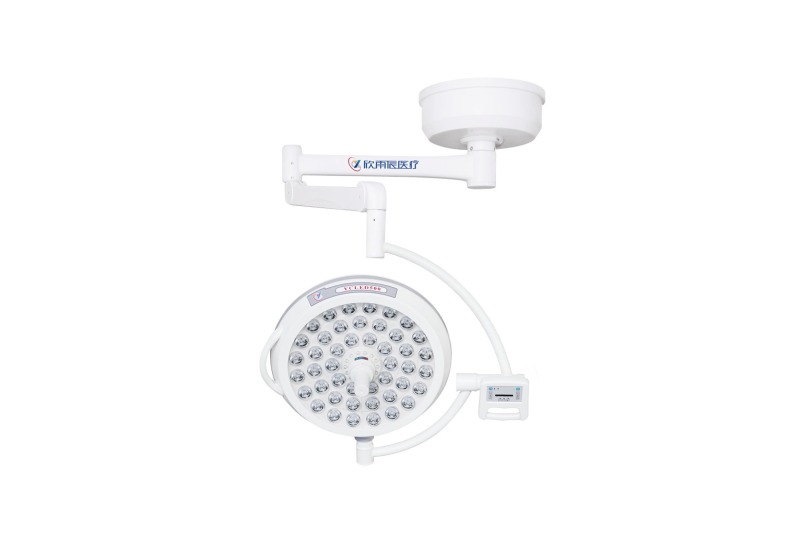

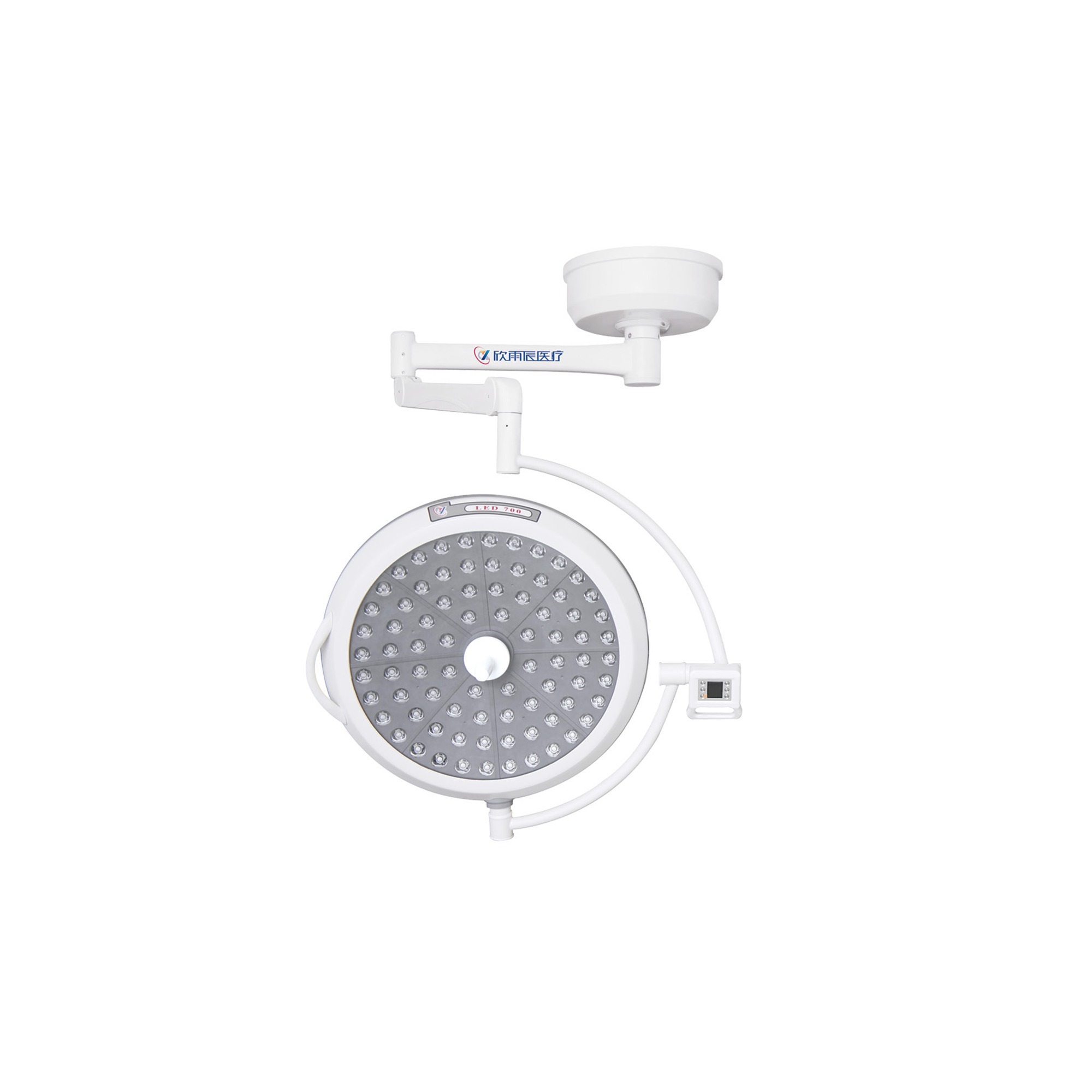

Surgical medical shadowless lamp

-Ordinary

-Single-headed lamp

It is made up of 12 pcs LED lamps. When one of them was malfunction, it would not affect the integral illumination. You don't need to replace it. The colour temperature can be chosen from 4000K to 6500K. The illuminated area is getting almost no temperature. More beautiful model because of the optimization design, more reasonable technics, more competitive.

Specifications: Model KD-2012D- 1

Voltage 90 - 240 V

Lamp Power LED 12 x 3 W

C.T. 5500 ± 500 K

Lamp Life 50000h

Illumination 40000Lux

Net Weight 8.0 kg
Package Size 800 × 420 × 270 mm

Product Parameters

Product Name	Size	Certificate	Feature	Shelf Life	Color temperature
Surgical medical shadowless lamp -Ordinary -Single-headed lamp	31.5 x 10.63 x 16.54 inches, 16 Pounds	IEC60601-1/ISO 13485/FDA/CE	Excellent shadowless effect, Bright and uniform lighting, Long service life	5 to 10 years	4300±500

Product Application

ENT

The shadowless examination light is a versatile lighting solution that can be effectively utilized in a range of medical departments including Outpatient services, Stomatology, ENT (Ear, Nose, and Throat), Gynecology, and the General Surgery department.

General surgery department

The shadowless surgical light is used to illuminate the surgical site for optimal observation of small, low-contrast objects at different depths of incision and body cavity.

Stomatology

The Mounted LED Shadowless Lamp is commonly used in dental clinics and surgeries to provide clear and shadow-free illumination, allowing dentists to accurately visualize and carry out various dental procedures, such as fillings, extractions, and root canals.

How To Use

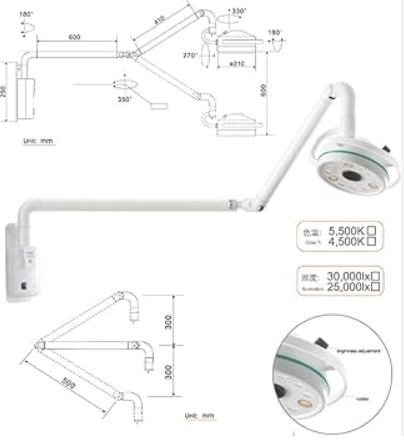

Mounting: The first step is to securely mount the LED Shadowless Lamp to a suitable surface. This may involve attaching it to a wall, ceiling, or stand, depending on the specific mounting options provided.

Adjusting Position and Intensity: Once mounted, adjust the position of the lamp's arm or head to direct the light beam precisely where it is needed. The flexible arm allows for easy maneuvering and positioning. Additionally, adjust the intensity of the light to the desired level using the provided controls.

Utilizing Sterile Covers (if applicable): Depending on the application, it may be necessary to use sterile covers on the lamp. In surgical or sterile environments, disposable sterile covers can be placed over the lamp to maintain a clean and hygienic environment, preventing cross-contamination.
